Installation References for Any Signs

No worries even if you cannot find the answer, pls contact us directly. Wings Signs are here to assist you all the time.

Acrylic is a plastic material with outstanding strength, stiffness,  and optical clarity. Acrylic sheet is easy to fabricate, bonds well with adhesives and solvent. Also acrylic work well almost in any kinds of craft styles.Whereever you visit around, you will find the existence of acrylic signs. Here we mainly talk about, is non-light acrylic signs, whether flat cut, nor blister vacuumed.

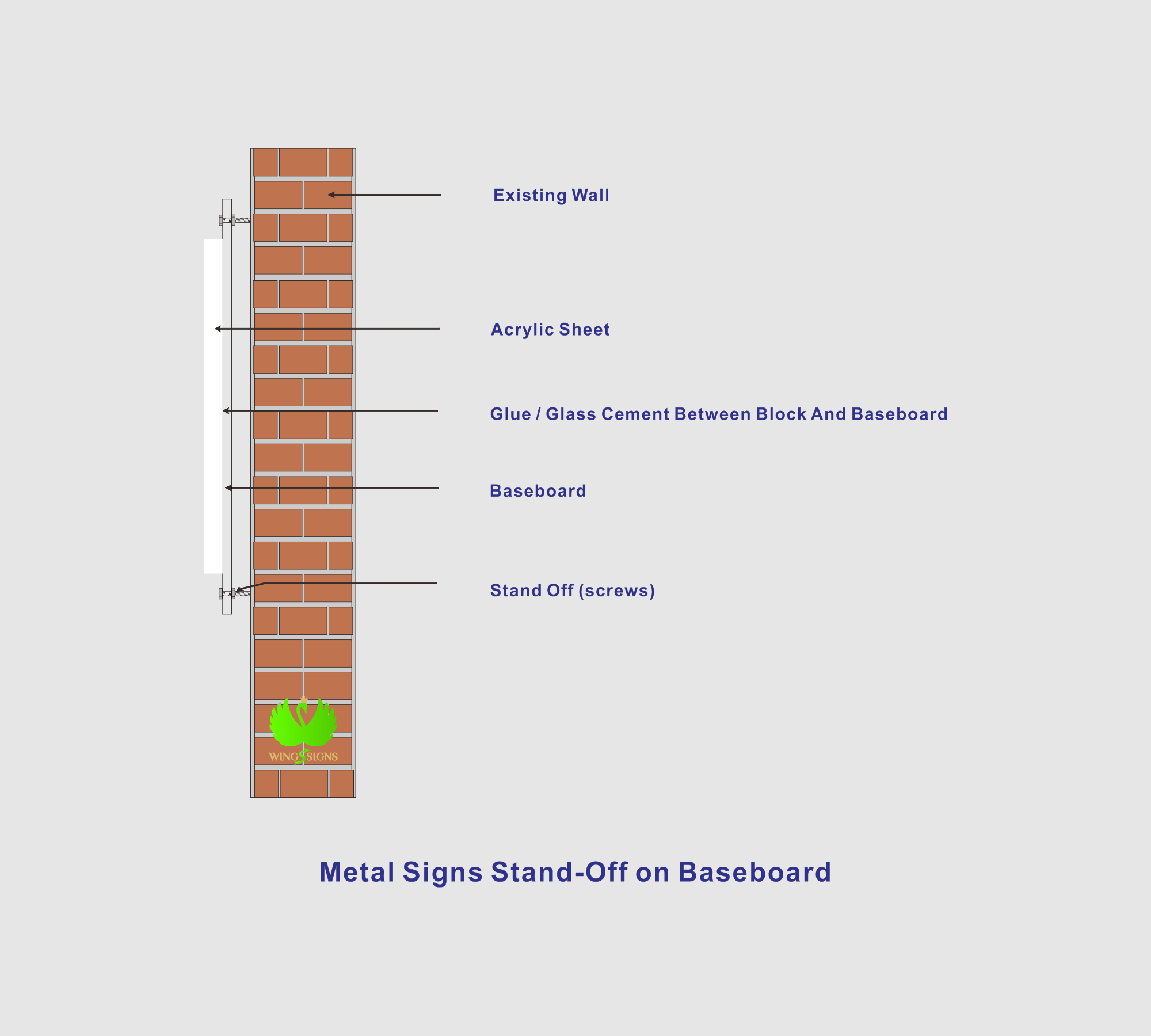

Normally it has three different installations, stand-off on wall, stand-off on baseboard, and flush on wall.

Led backlit channel letters signs are also called led halo lit signs or reverse channel letters signs. This sign helps you create a classy look and is ideal for businesses that want to convey a softer image. Instead of using an acrylic face, reverse channel letters signs use metal /stainless steel faces and returns. Letters are mounted with a 1.5-inch or greater separation from the building, resulting in a halo effect that engulfs the perimeter of each element. Halo channel signs work best against light-colored stucco, aluminum or concrete. It’s often not the best options against dark masonry, such as block or brick construction, mirror surface etc. These materials tend to absorb or distort the light for a dimmer effect.

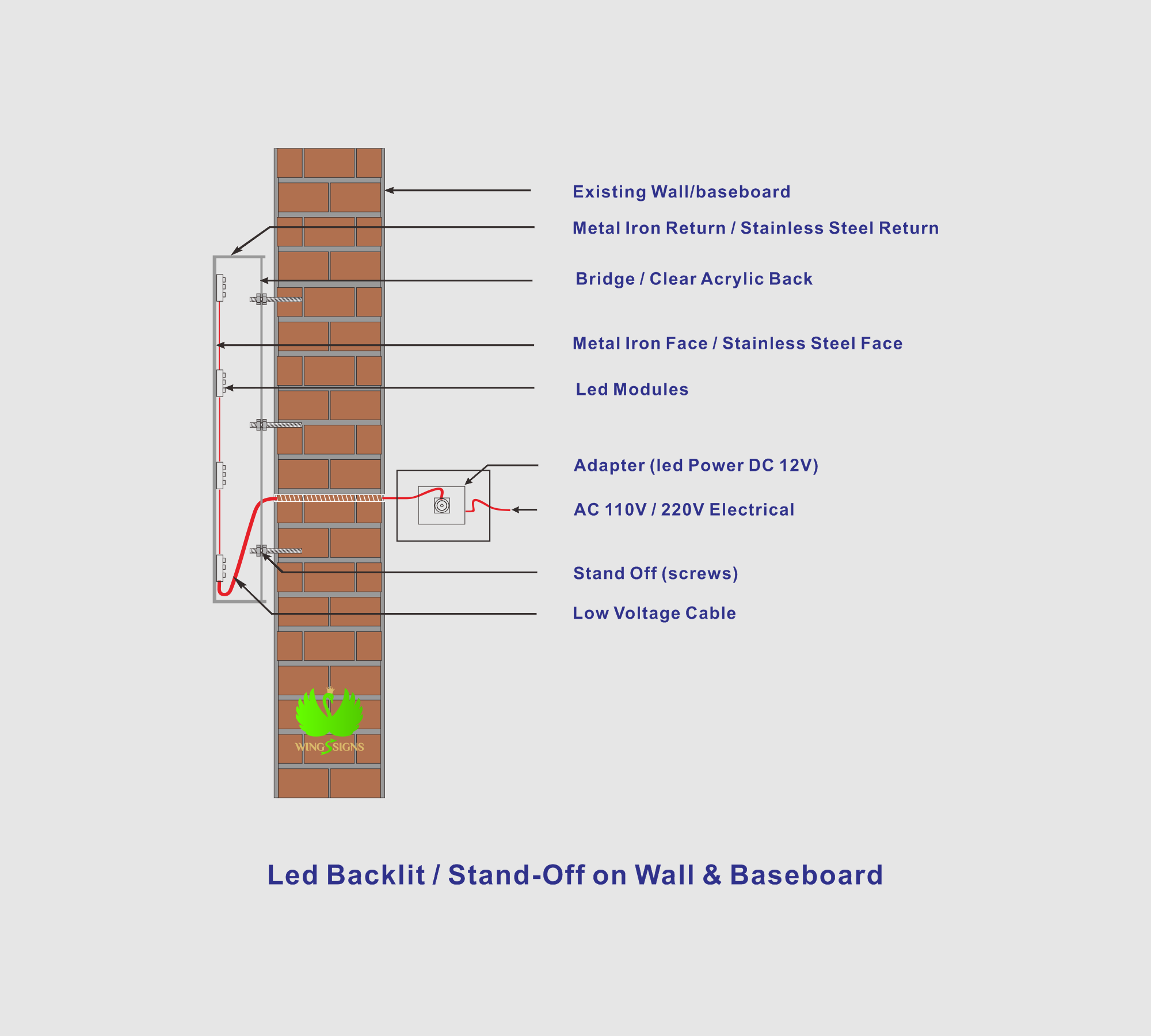

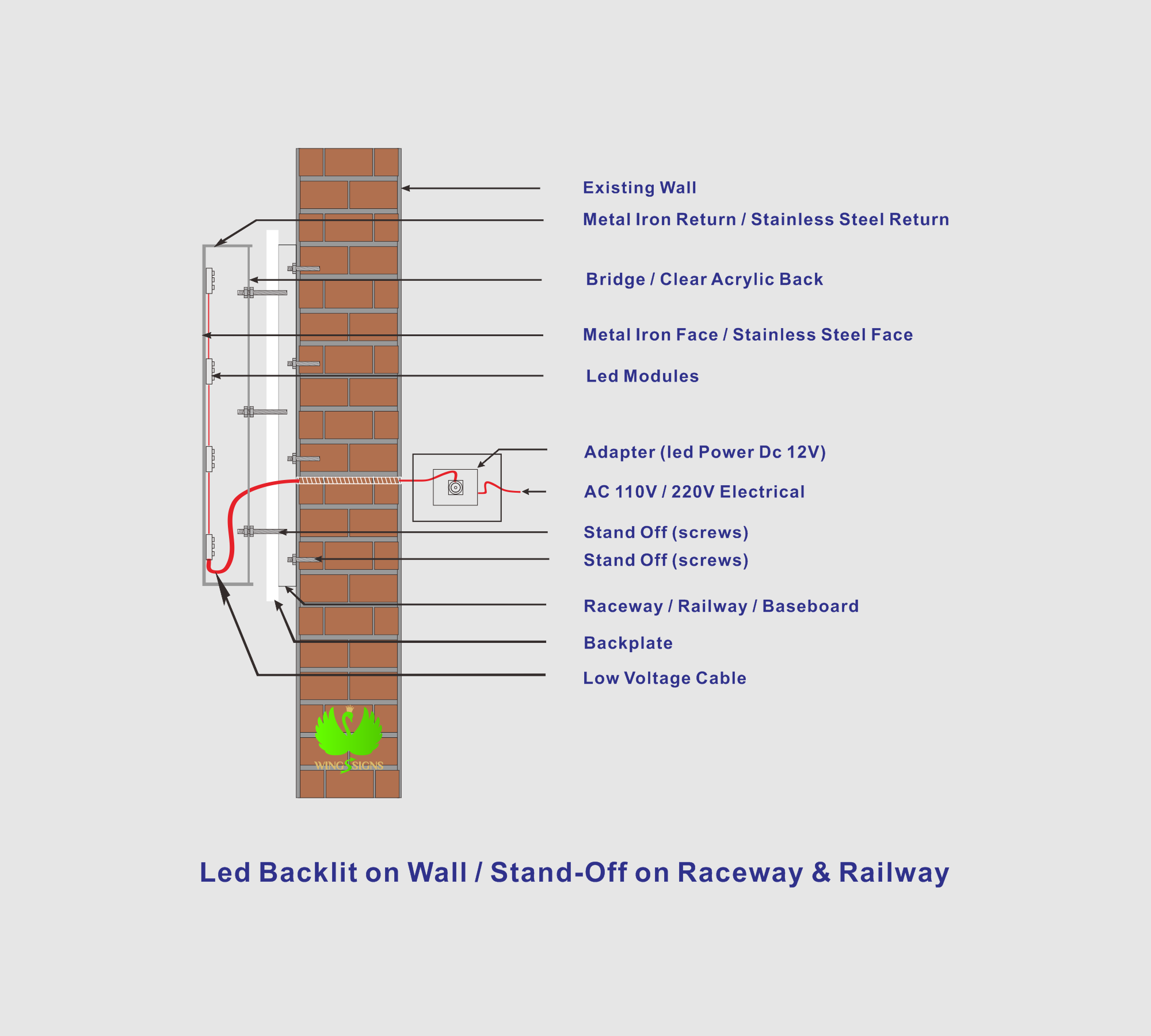

Normally it has two different installations, stand-off on wall/baseboard and stand-off on raceway/railway.

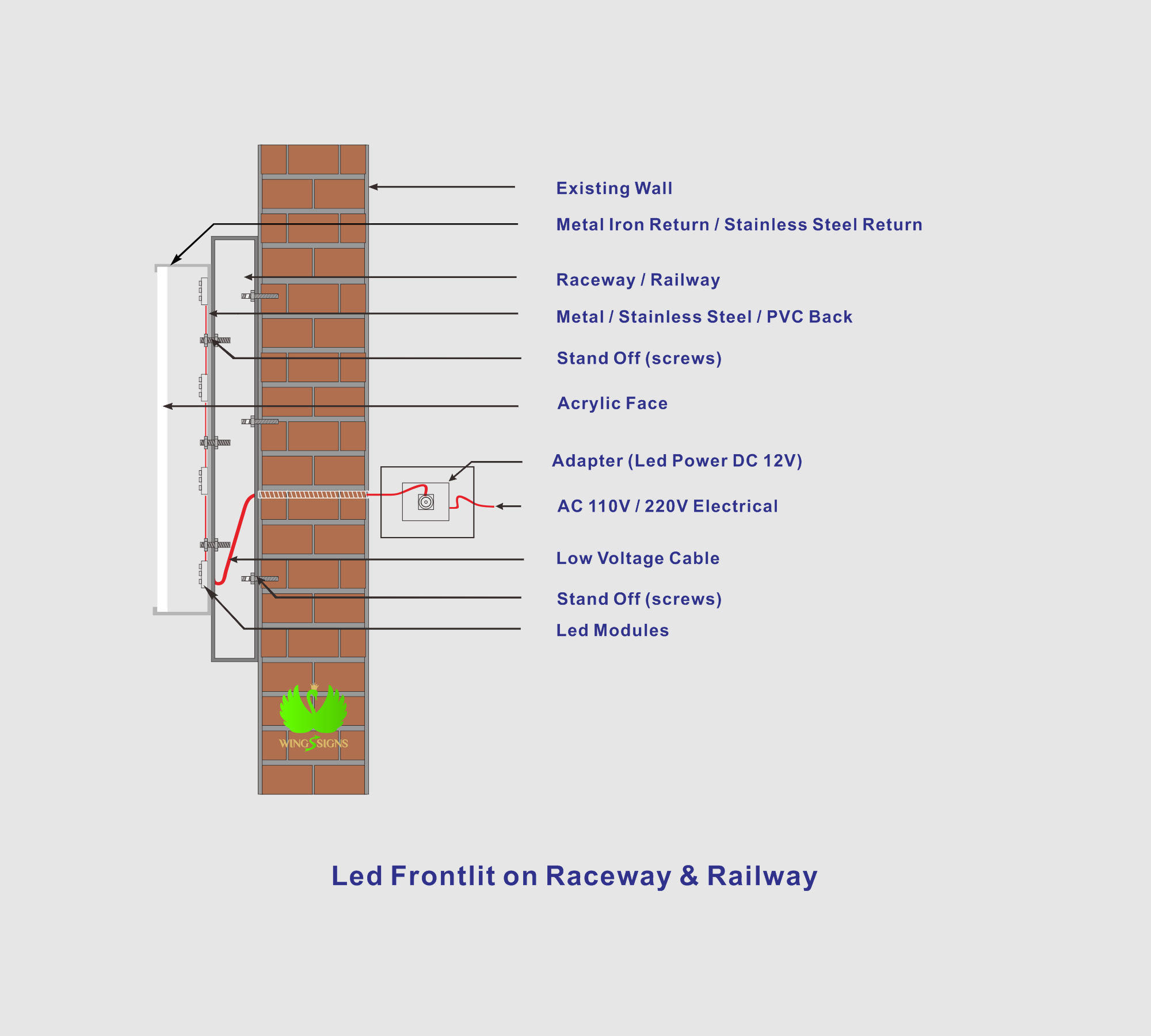

LED Front-lit Channel letters Signs are the most common type of illuminated signs. They have an acrylic face, metal/stainless steel returns and backs, and trim caps. Someone would call it as led facelit-channel letters signs. These signs are completely customizable and have LED modules hidden on the interior of each letter. Since they can be seen from greater distances, front-lit channel letters work well if you want to attract the attention of drivers passing your business. Choose brilliant LED illumination and thick letters to make them easier to read from far away.

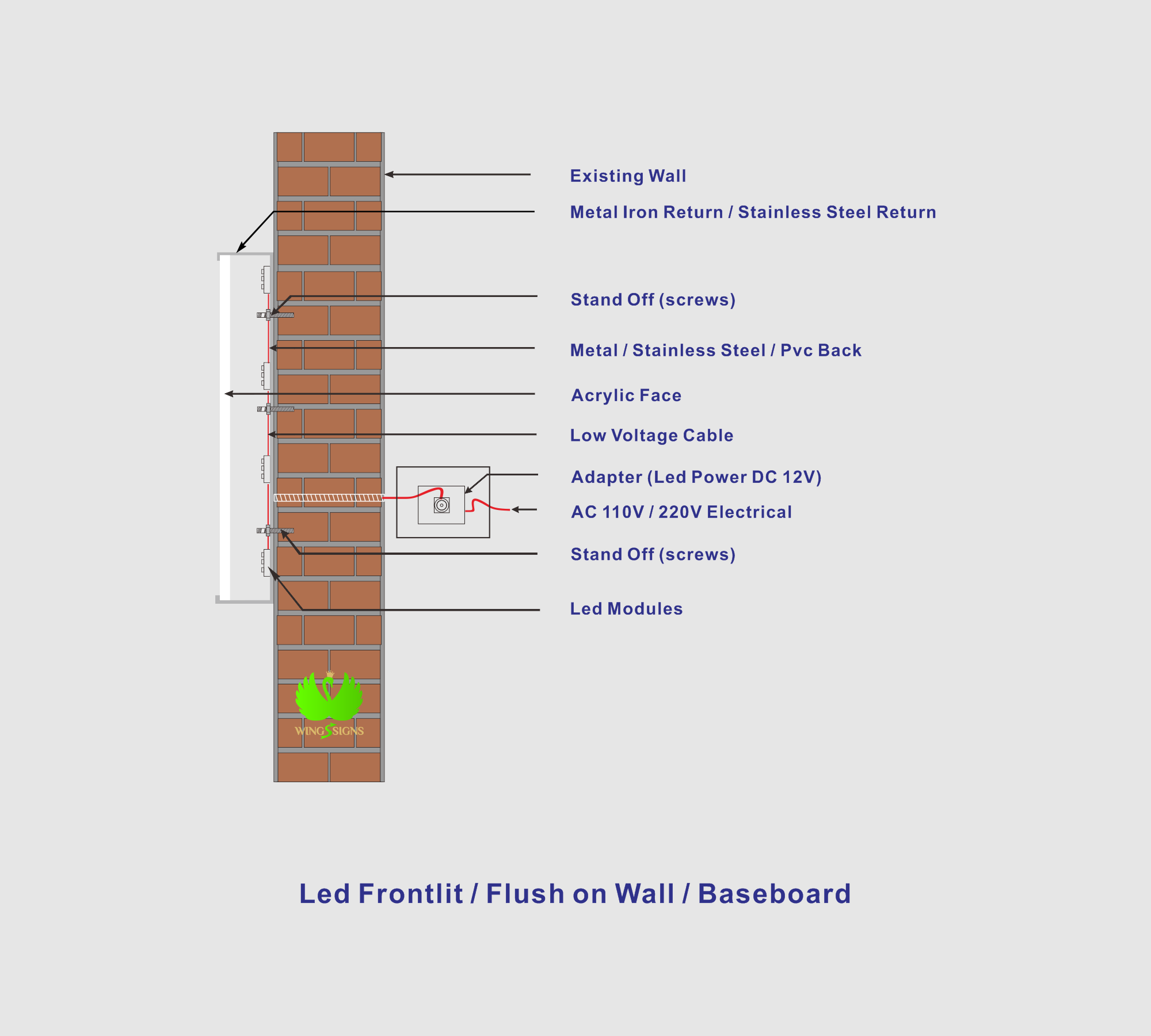

Normally it has three different installations, stand-off on wall/baseboard, flush on raceway/railway, and flush on wall/baseboard.

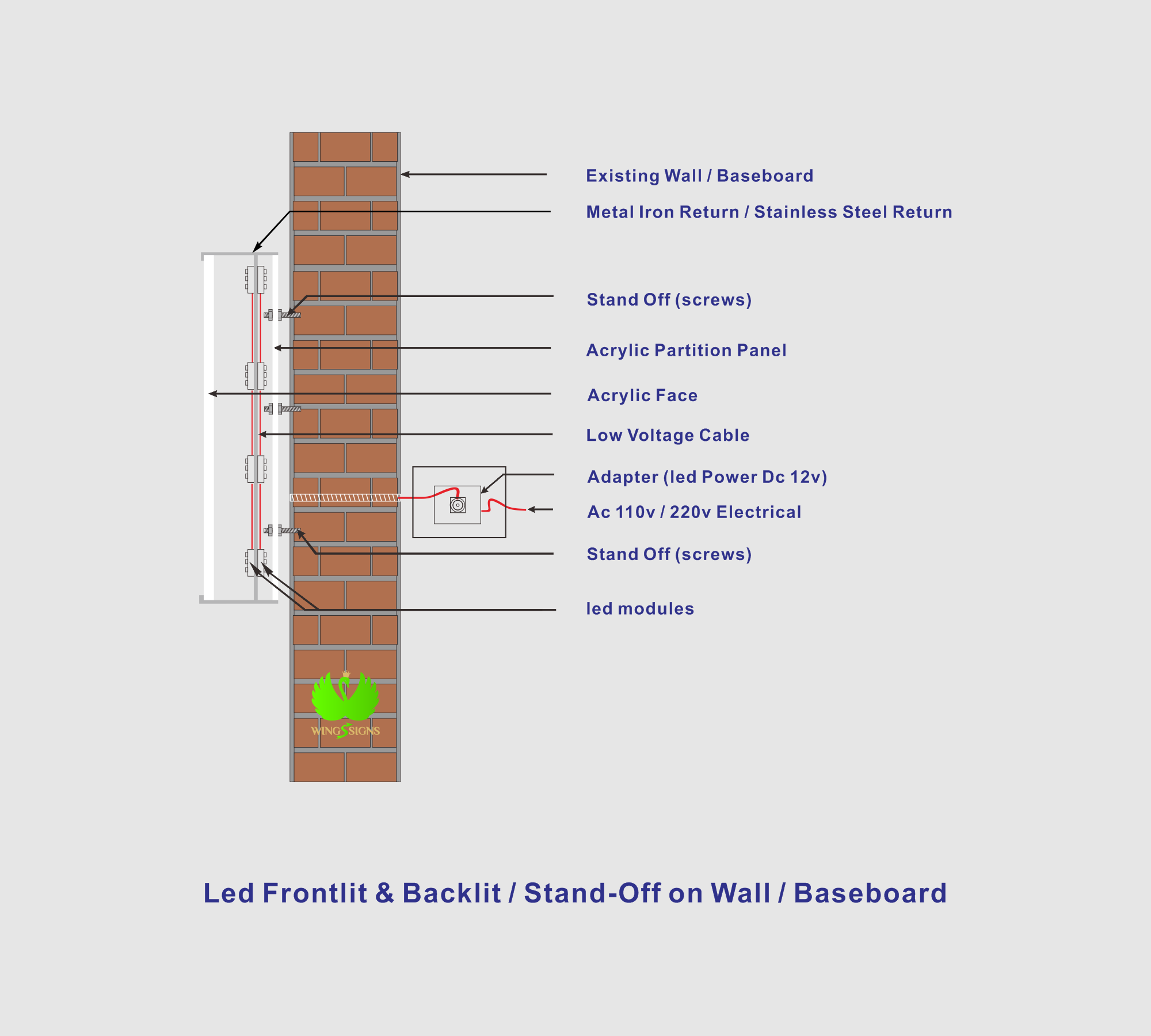

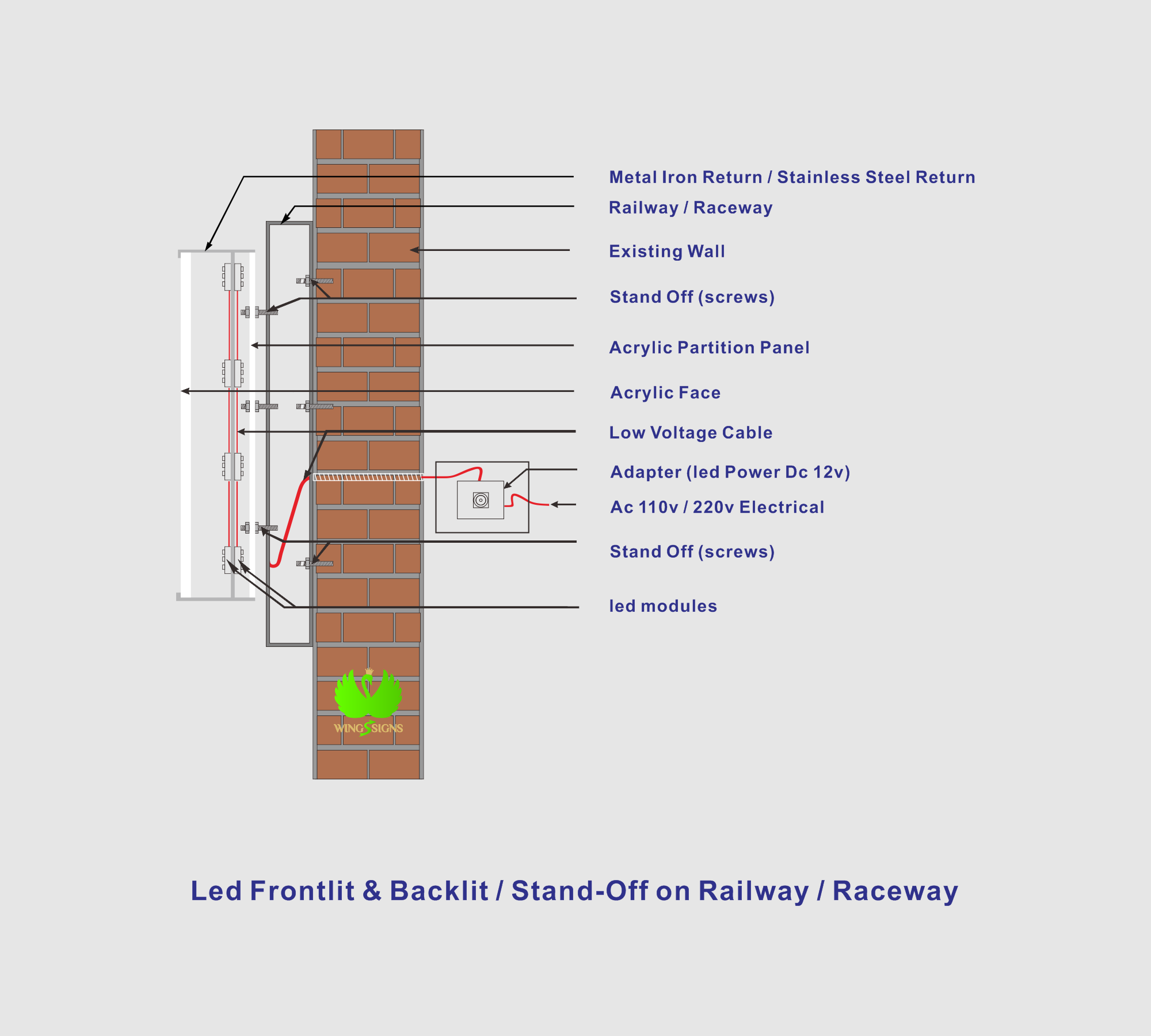

LED Frontlit & Backlit Channel Letters Signs are the overlap effects, also called Led Double-Sided-Lit Channel Letters Signs, both the surface and the back panel illuminated. When powered, the signs are extremely conspicuous, at the same time reflect back to the wall or the baseboard obviously. So this craft style works really awesome if you have special light requirements, both for indoors and outdoors.

Normally it has two different installations, stand-off on wall/baseboard and stand-off on raceway/railway.

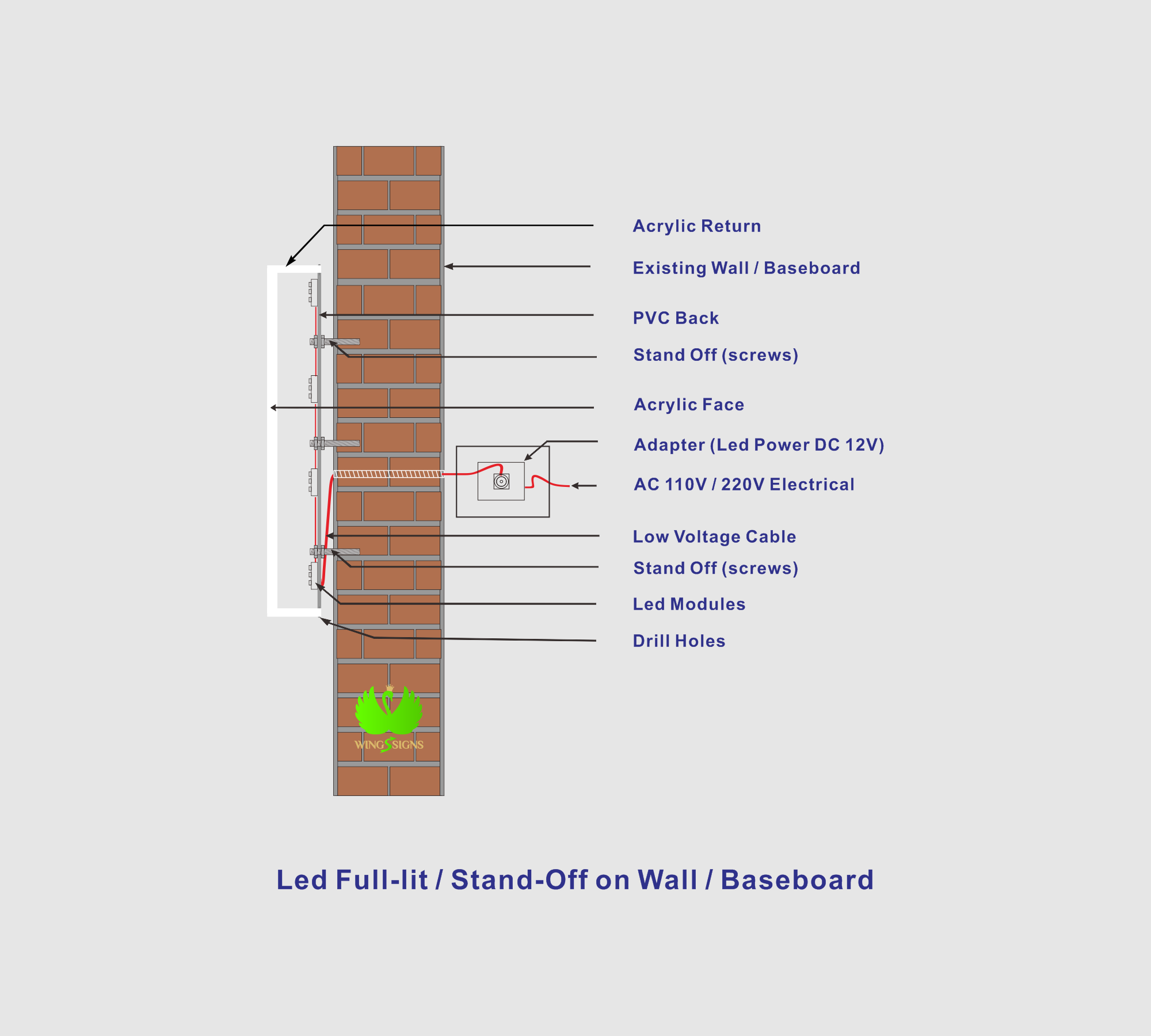

Led Full-lit Channel Letters Signsnormally called whole-lit or frontlit & sidelit,  use acrylic as the material of the face and return, with light coming out from both face and side of each letter, like a combination of front lit and side lit. So it will be brighter than front-lit channel letters and halo back-lit channel letters, which will attract more drivers and passengers, do more help to your business.

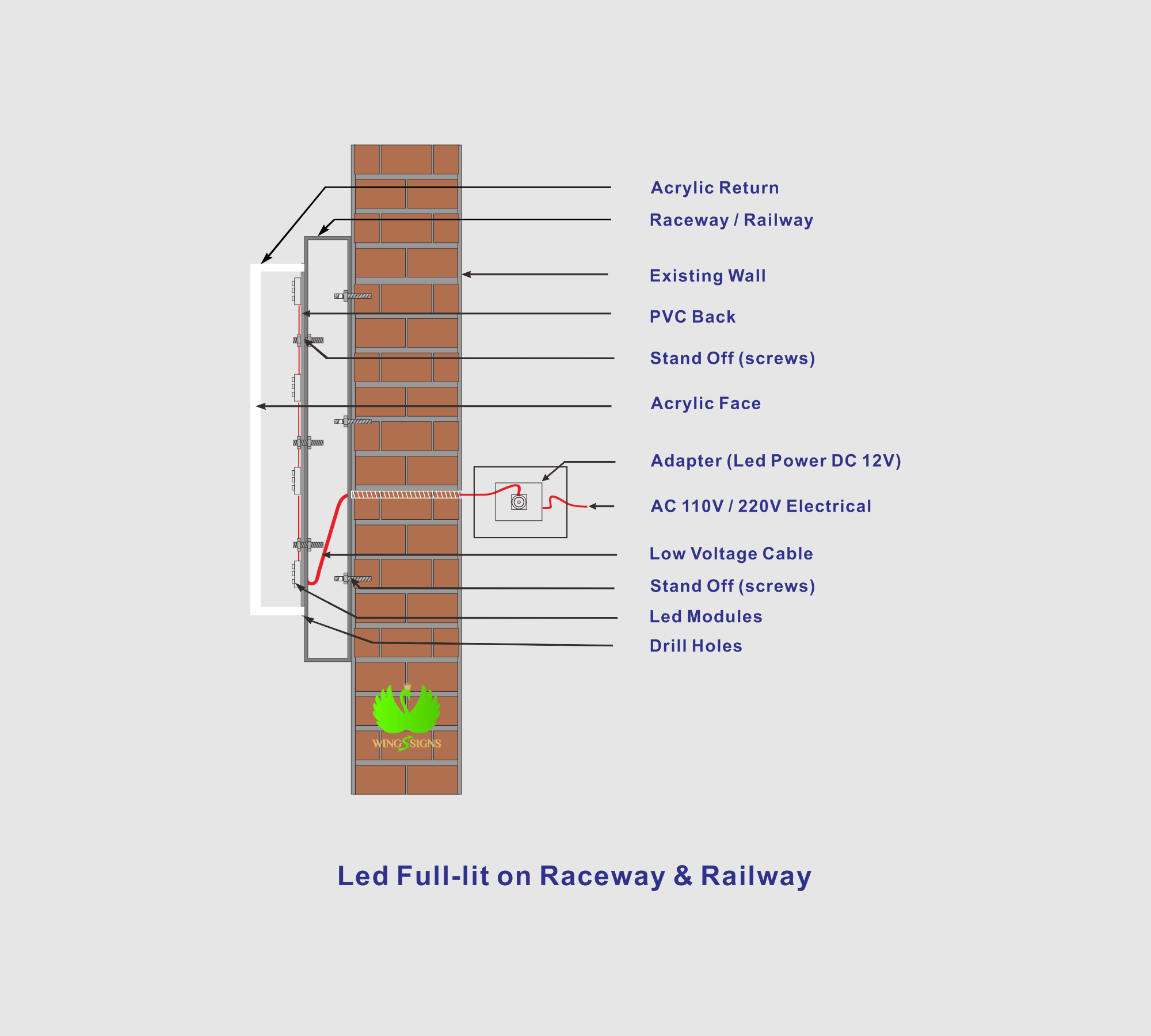

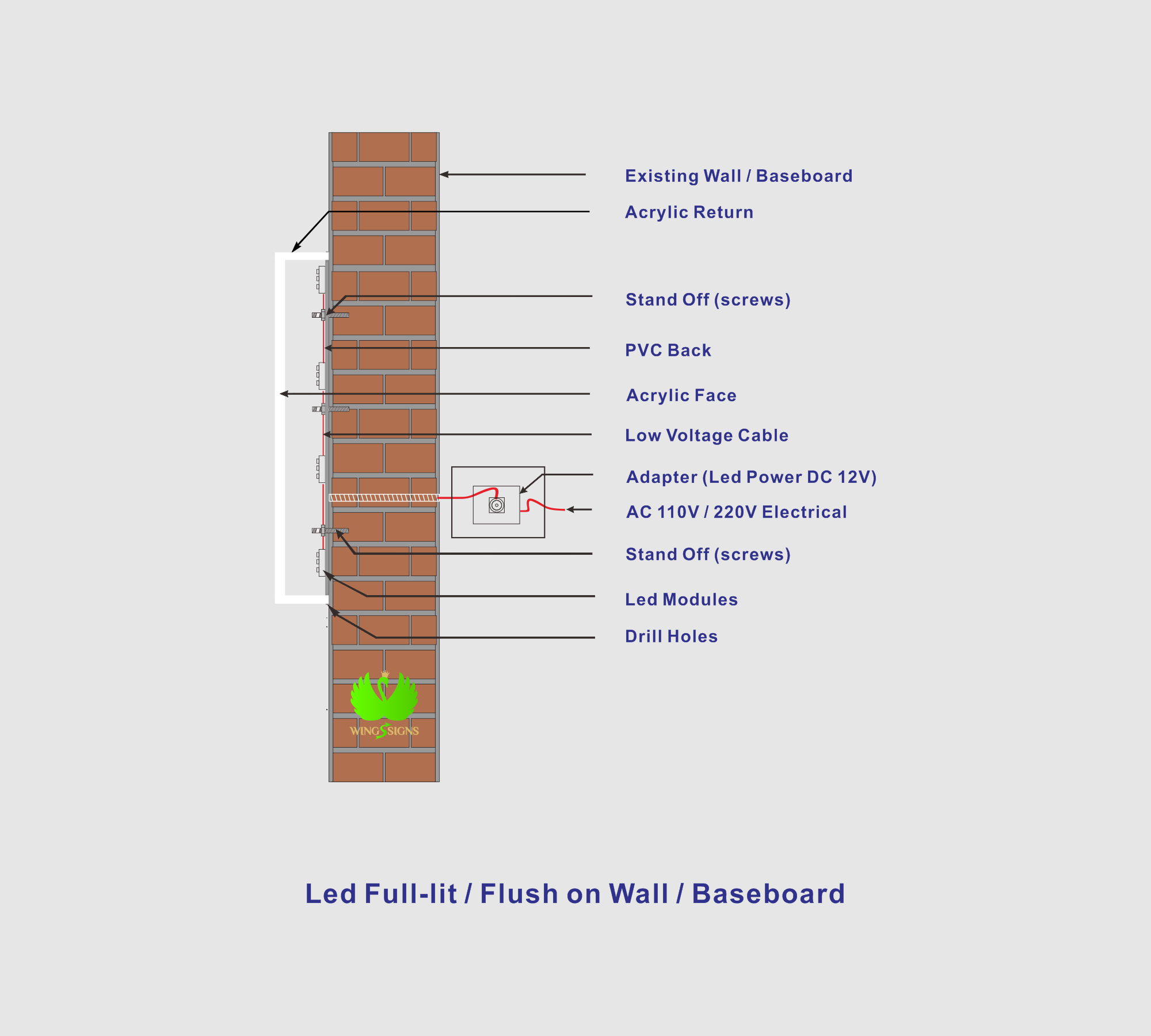

Normally it has three different installations, stand-off on wall/baseboard, flush on raceway/railway, and flush on wall/baseboard.

The main character of Led RGB lighting Channel Letters Signs are, we equip the sign with RGB lighting changing for each part of it. Normally it will have seven colors’ light, including white, red, green, yellow, pink, cool blue and blue. This kind of craft need a controller which will help you manage the changing of 7 colors. Most importantly, RGB lighting can work as frontlit, backlit, full-lit like any kinds of illuminated channel letters signs.

Normally it has eight different installations, including:

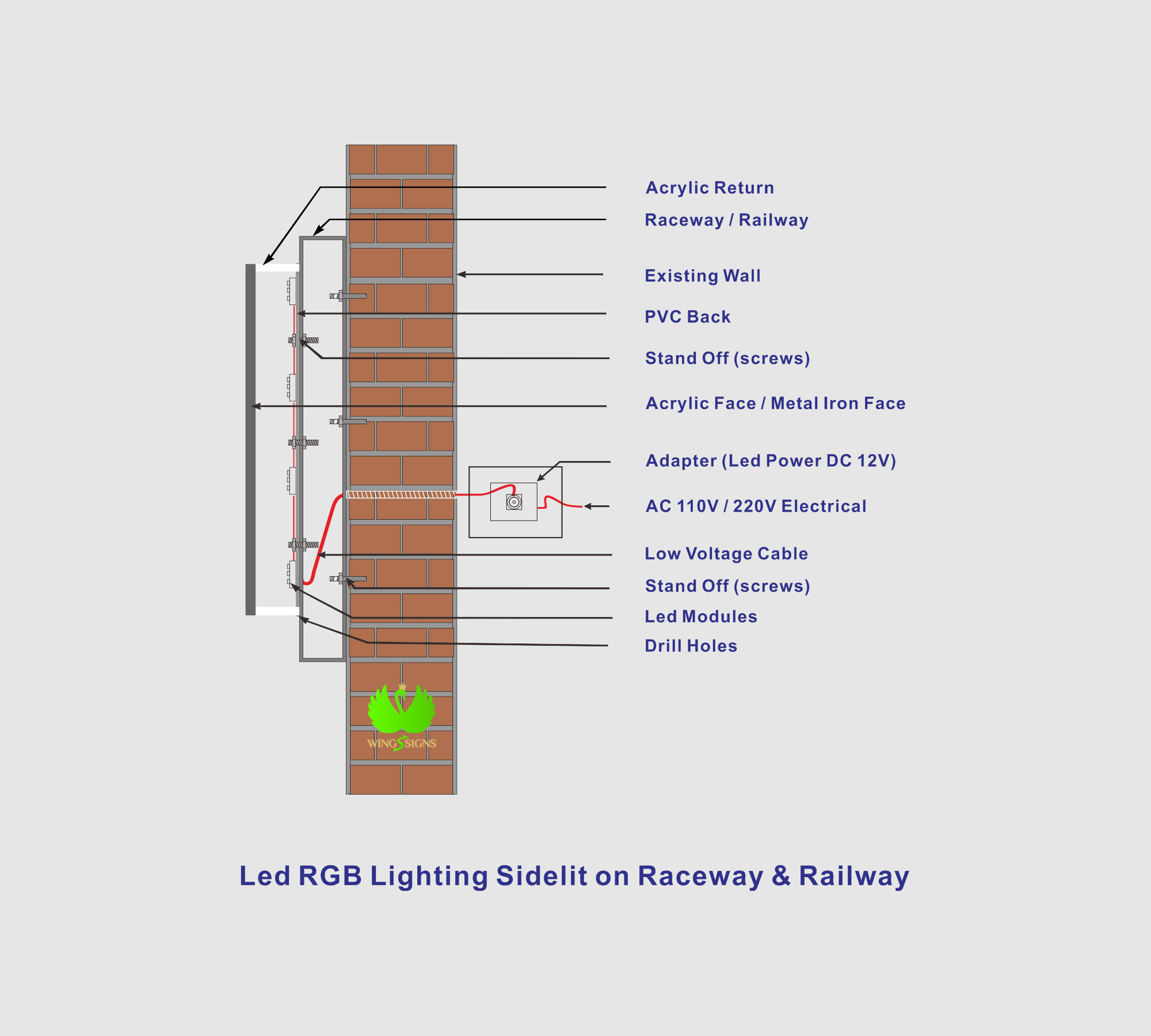

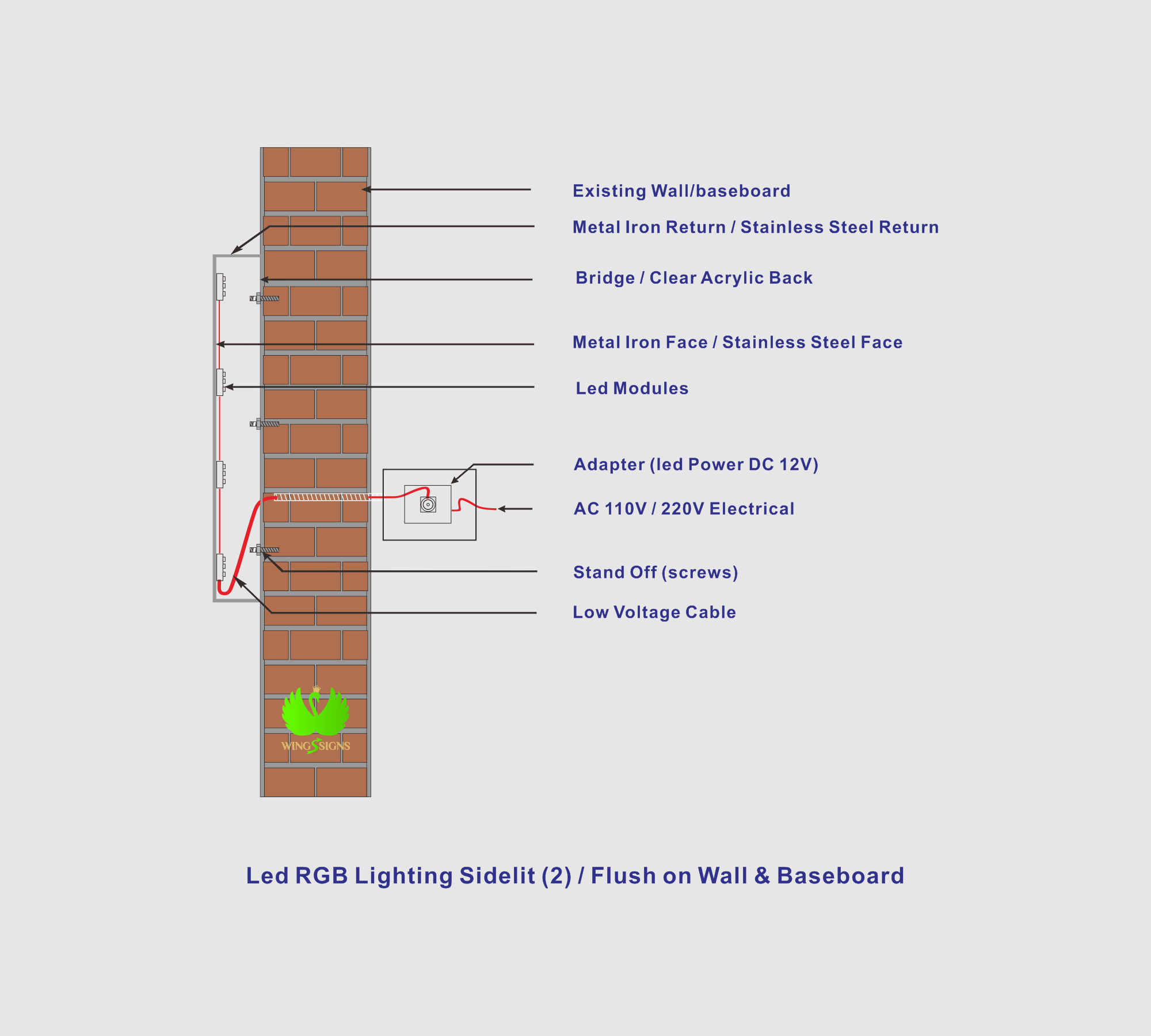

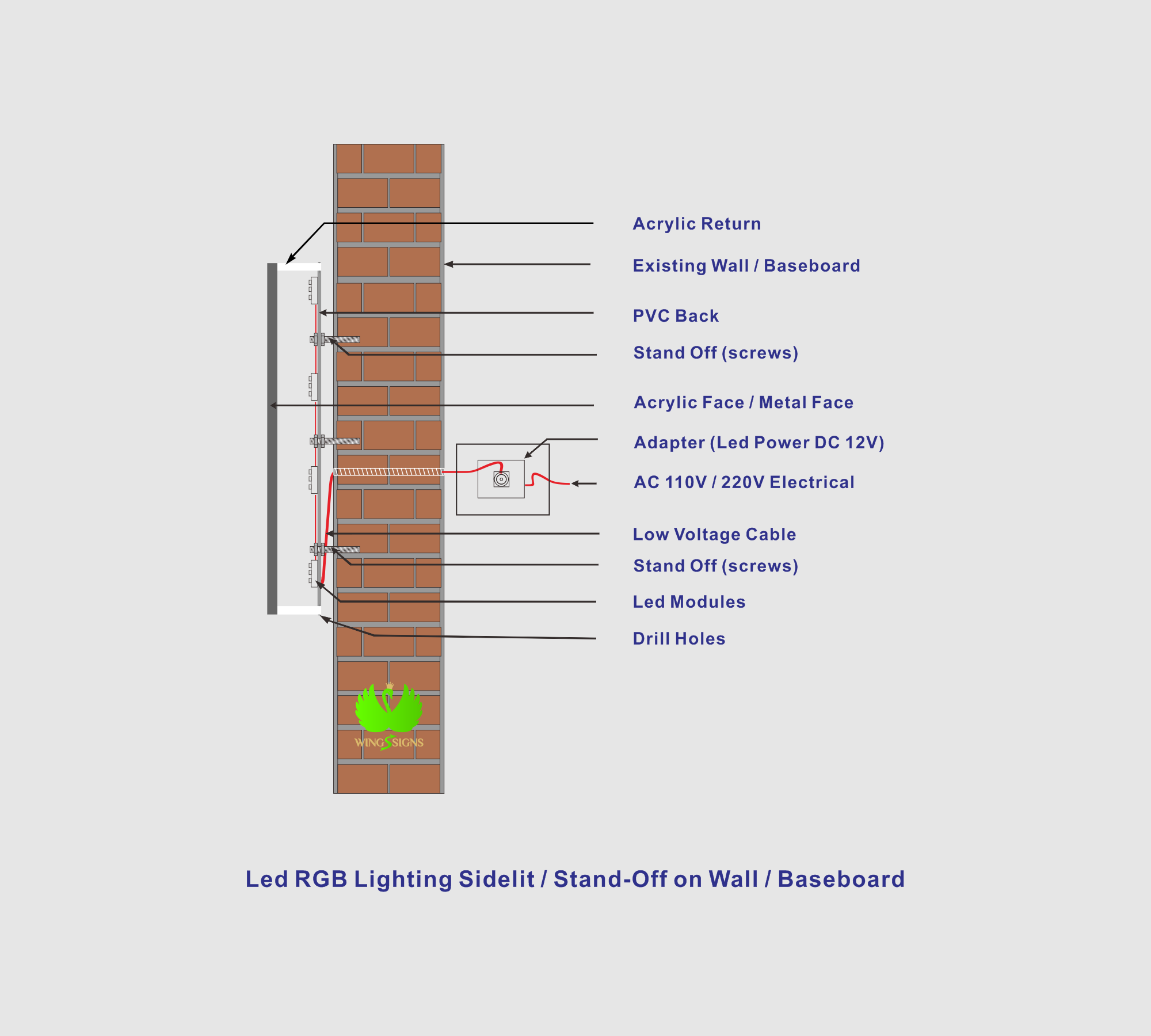

Led RGB Lighting sidelit – flush on raceway/railway, flush on wall/baseboard (1), flush on wall/baseboard (2), stand-off on wall/baseboard.

Led RGB Lighting frontlit – flush on wall (1), flush on wall (2).

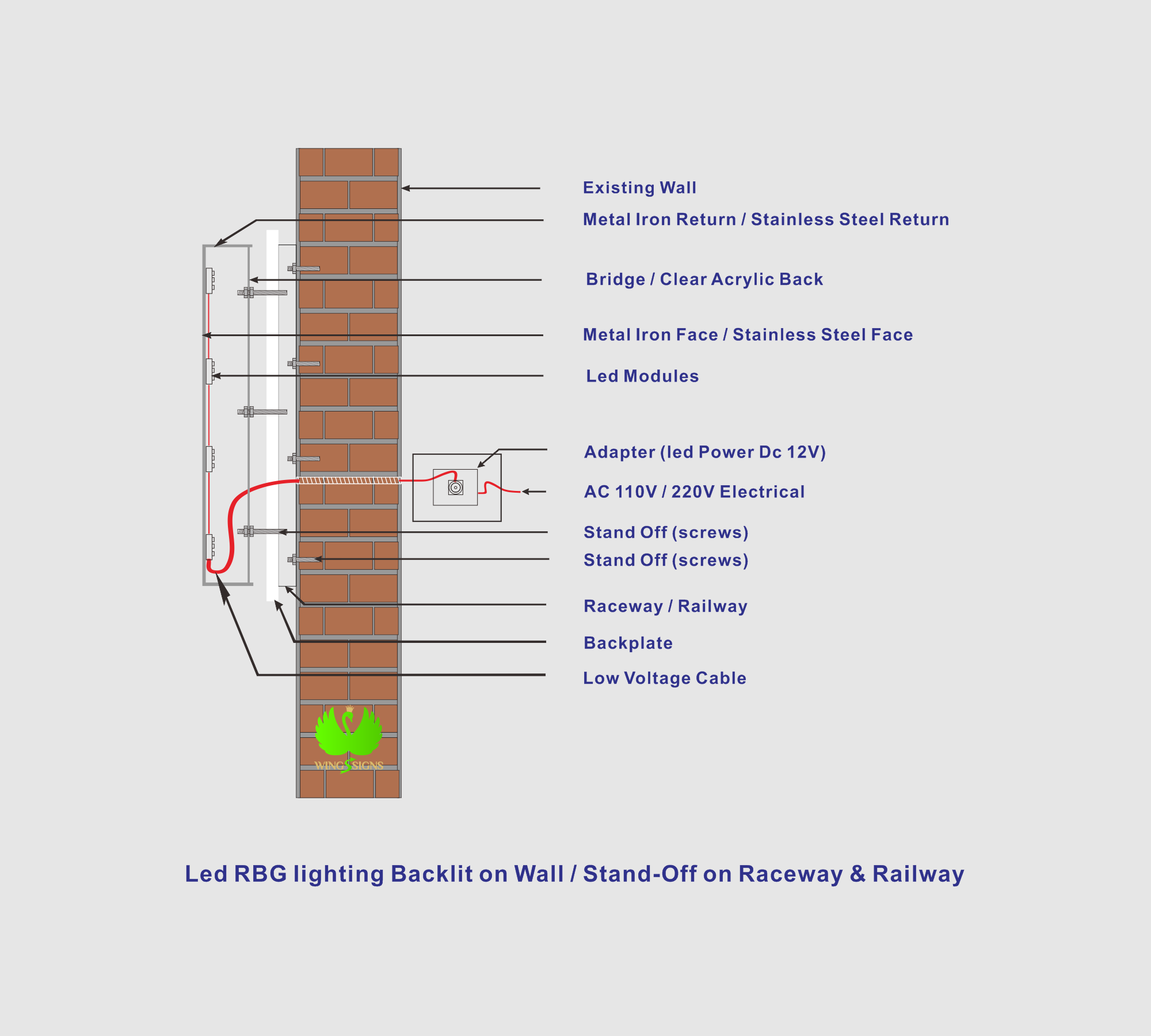

Led RGB Lighting backlit – stand-off on wall/baseboard, flush on raceway/railway.

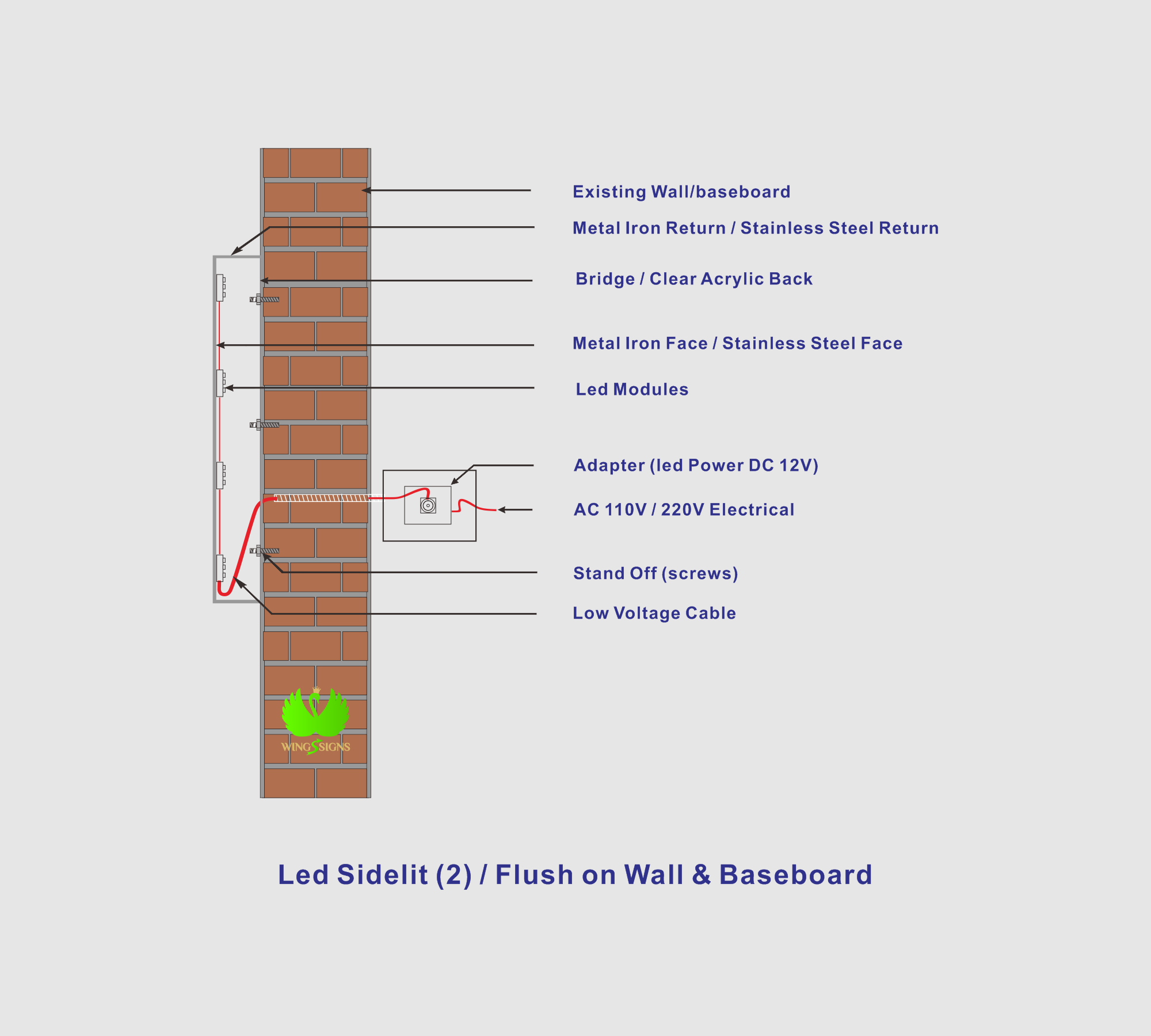

Led Sidelit Channel Letters Signs are similar to full-lit channel letters, just with one more metal/stainless steel on the face which will stop face-lit. Also we can use dark colored acrylic or power coated acrylic as the material on the face to stop light coming out, which only make the sign light from the side. So it is called sidelit, or edgelit. This kind of sign has a softer and brighter light than led backlit.

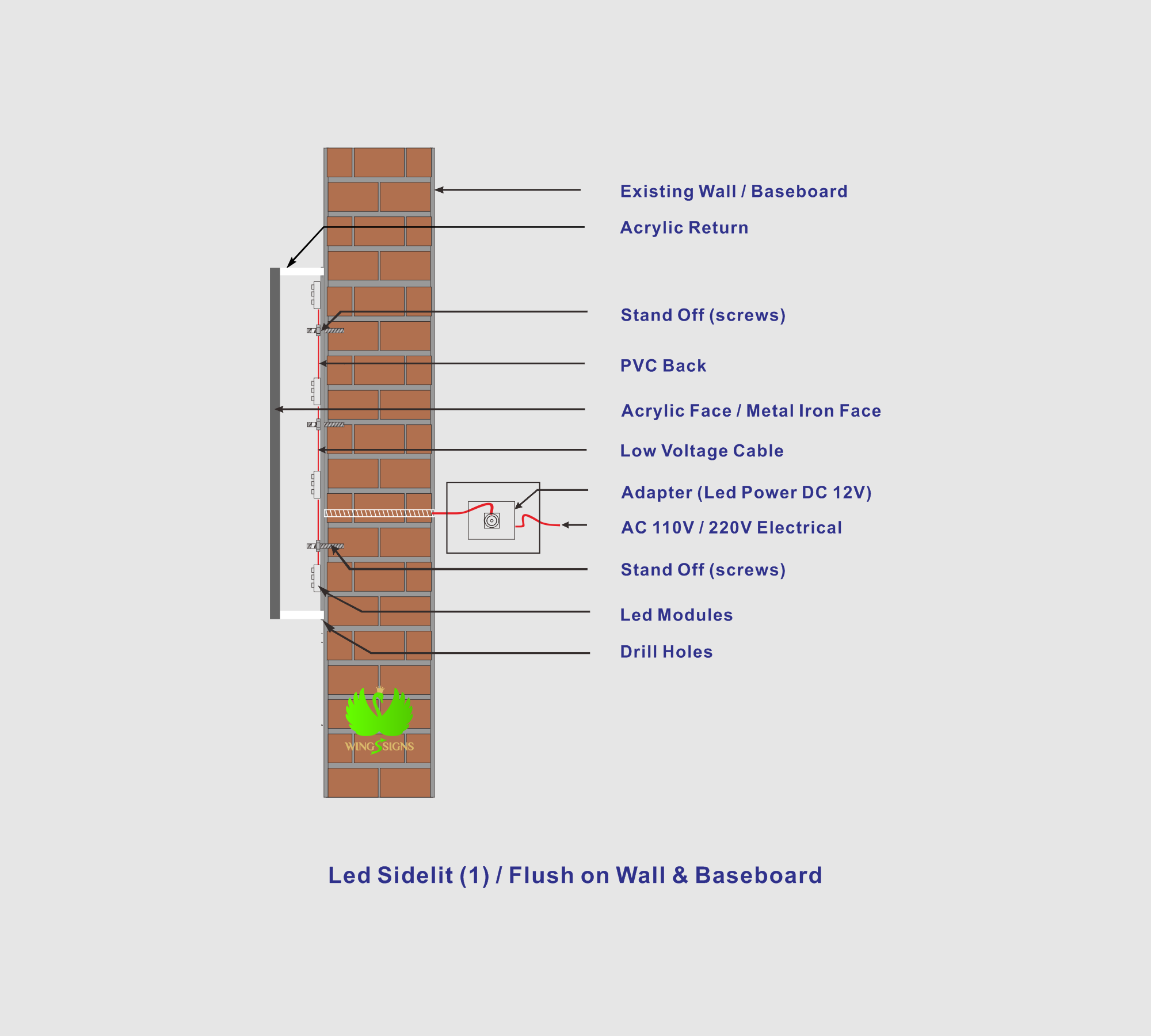

Normally it has four different installations: Flush on Wall/Baseboard (1) , Flush on Wall/Baseboard (2) , Flush on Raceway/Railway, Stand-Off on wall/Baseboard.

Metal signs are a kind of channel letters signs, normally refers to non-illuminated metal signs here, which are widely used indoors and the places with bright light. In this craft we use materials like metal iron, stainless stel, aluminium etc to fabricate the signs. If you don’t need lighted signs or have limit budget, it will be a satified solution.

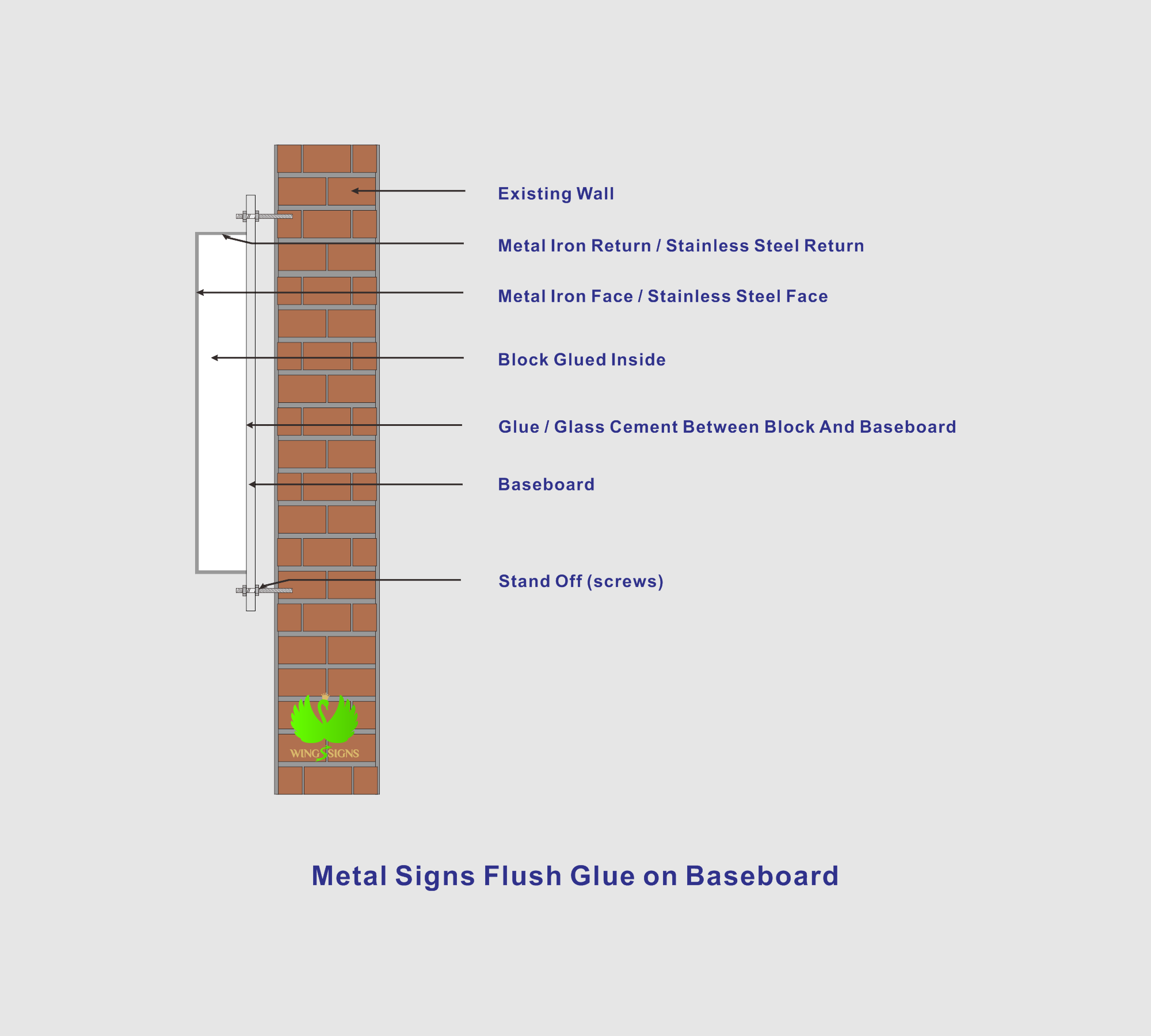

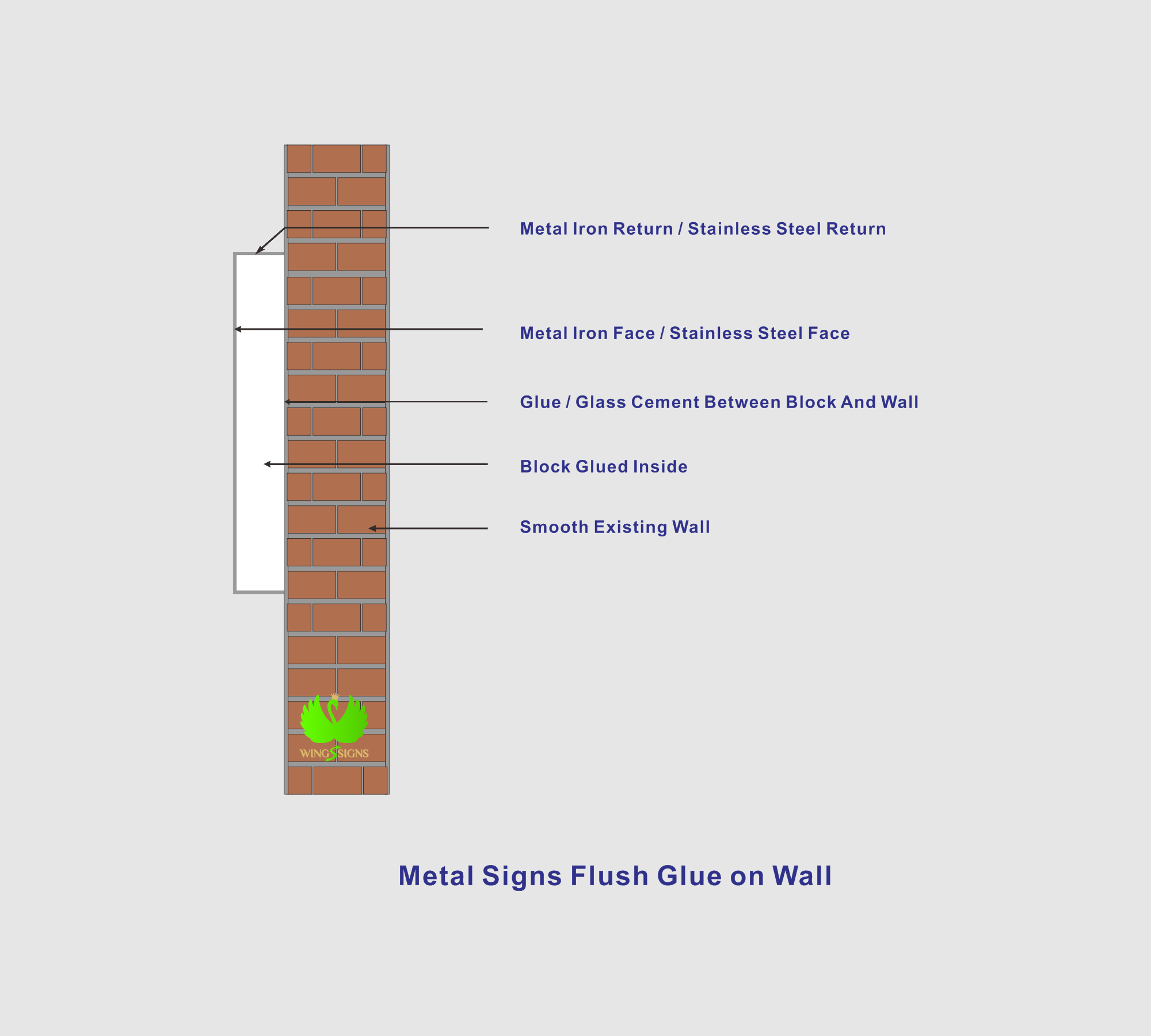

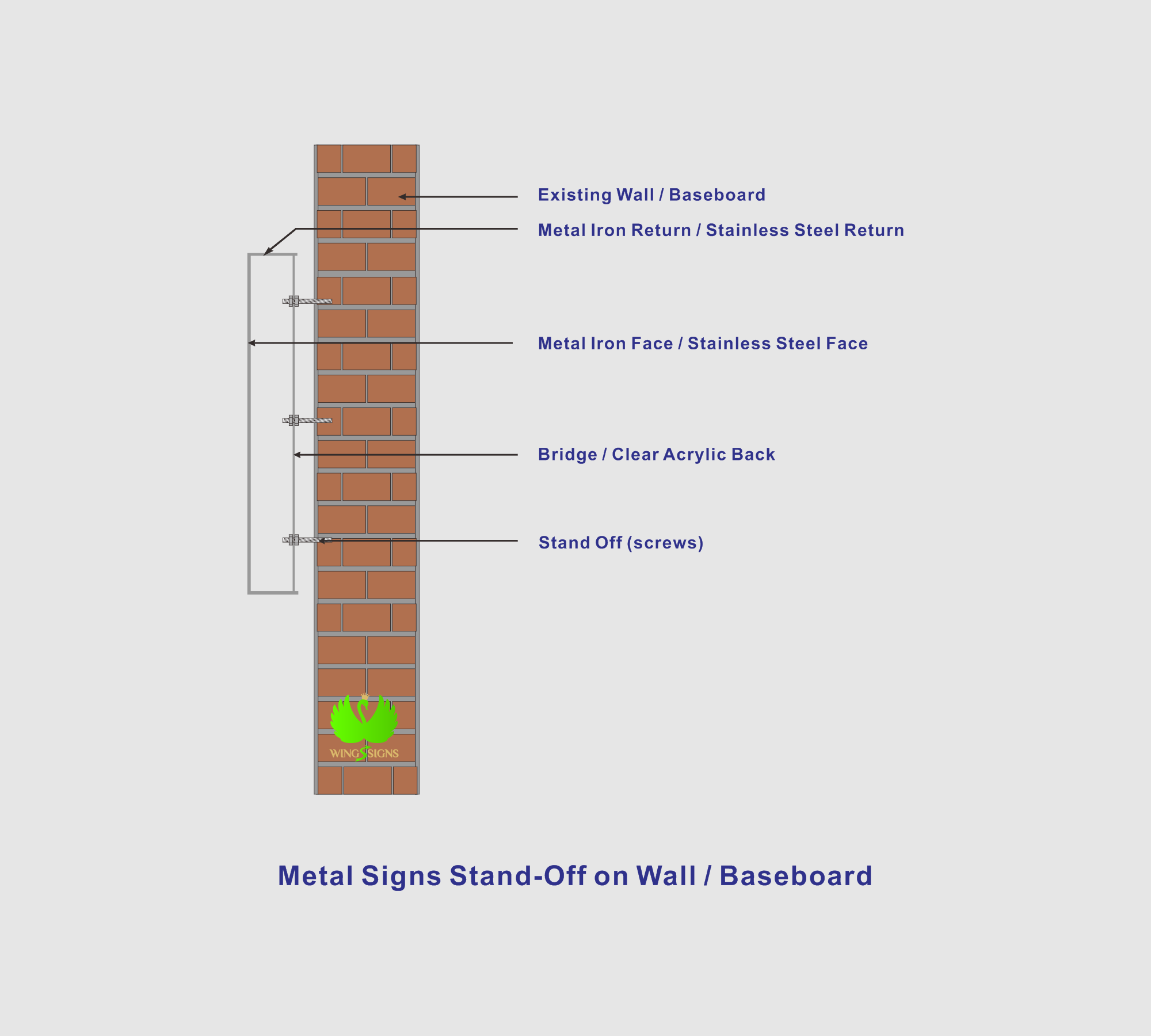

Normally it has three different installations: Stand-Off on Wall/Baseboard, Flush Glue on Baseboard, Flush Glue on Wall.

Single sided light boxes normally can be taken as another form of frontlit or big sized signboard, that’s to say, only the face of the signs illumiate. They mostly are installed back against the wall directly. This is the simplest way to display a whole sign. The material of the face is acrylic mainly, and the material of the return can be acrylic, metal iron, stainless steel, aluminium etc. All details are customized according to your own requirements.

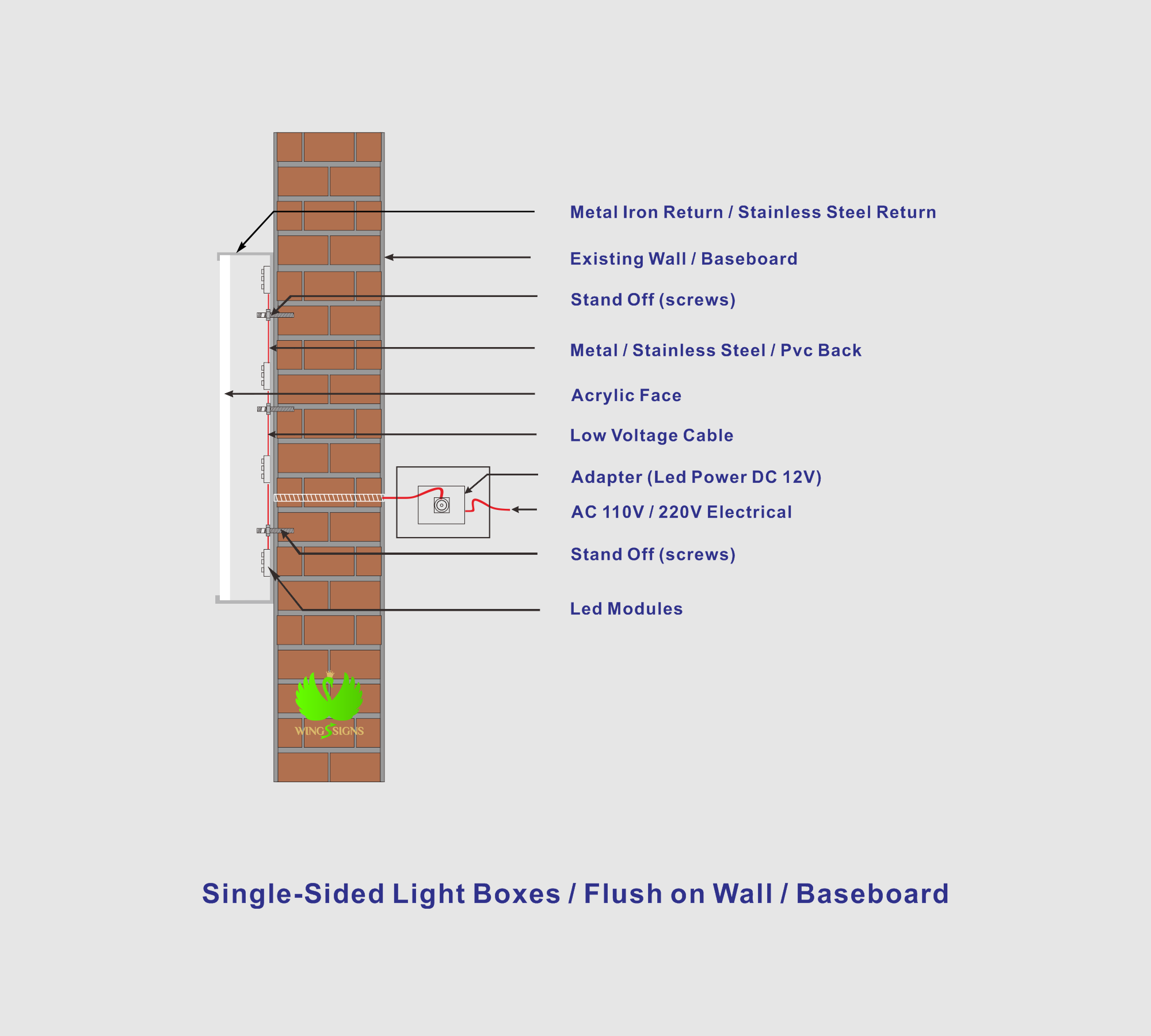

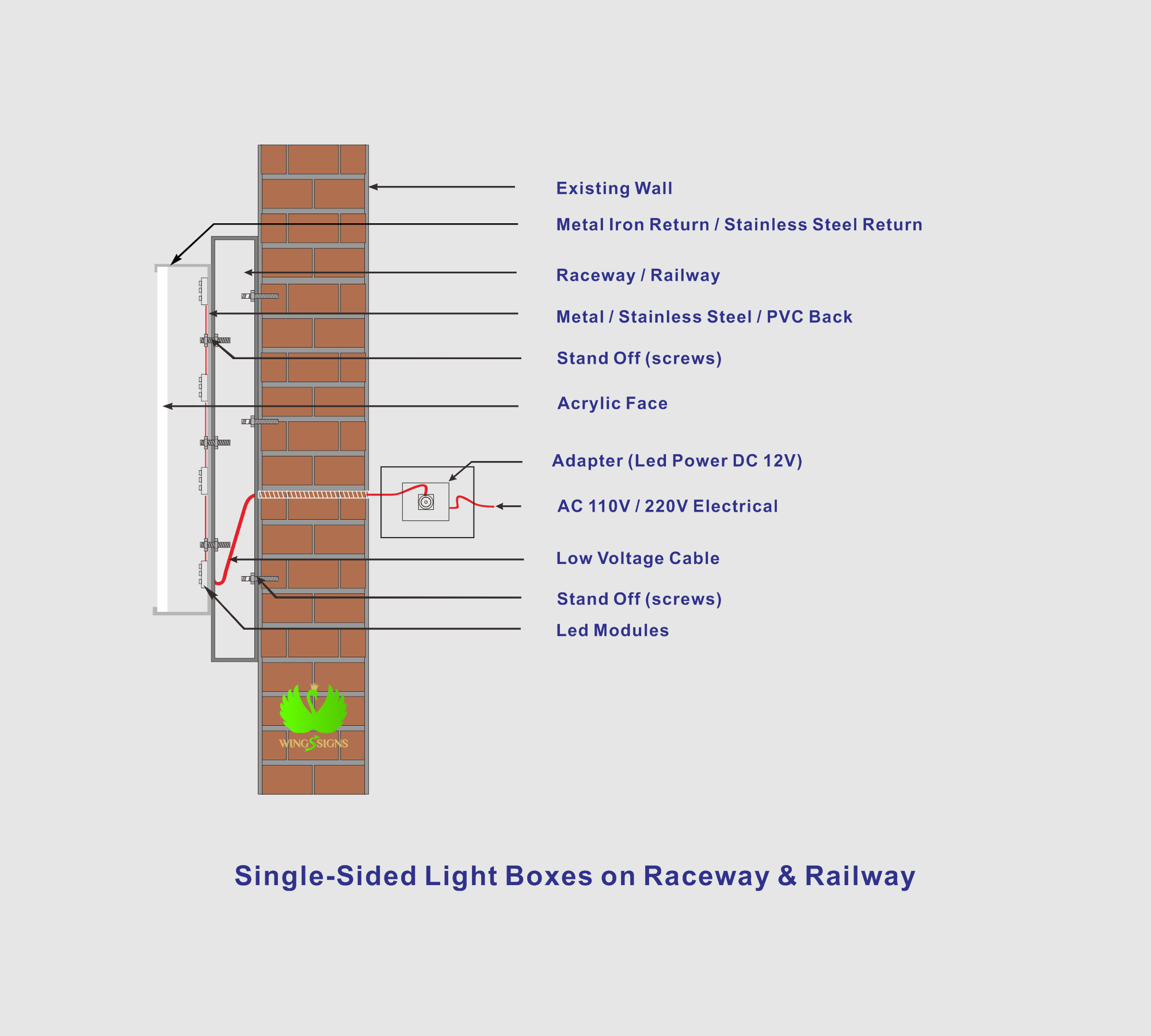

Normally it has two different installations: Flush on Raceway/Railway, Flush on Wall/Baseboard.

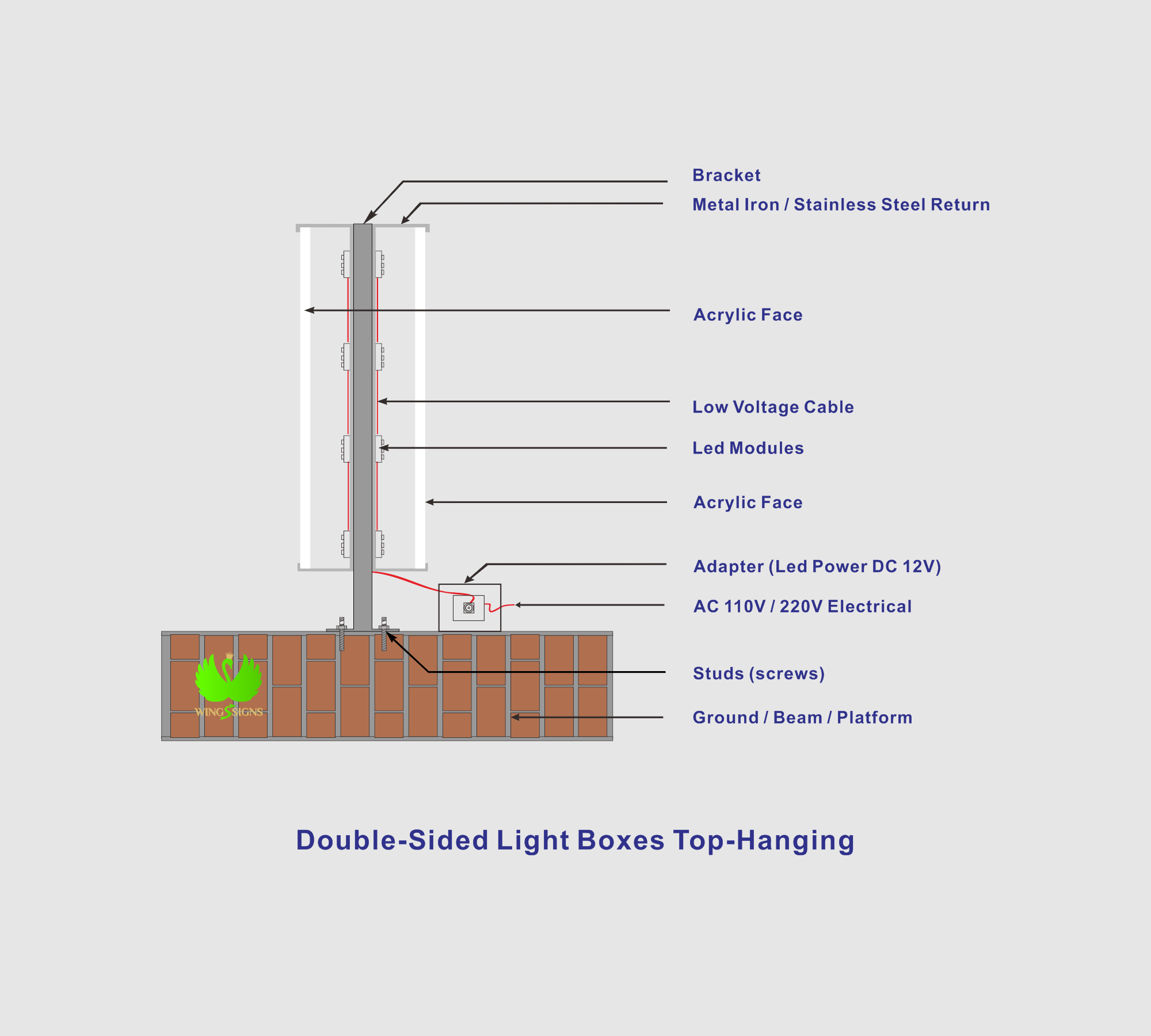

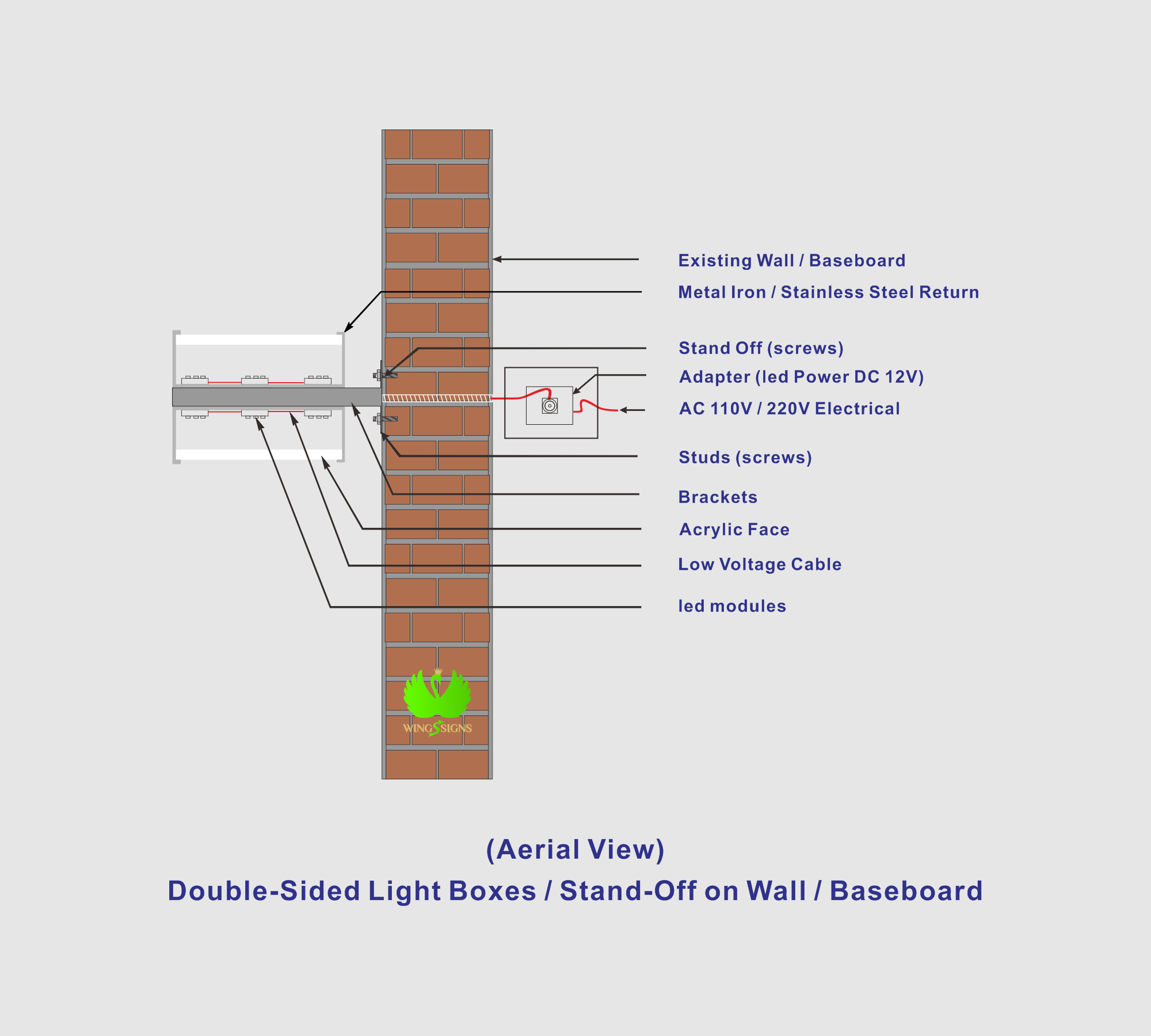

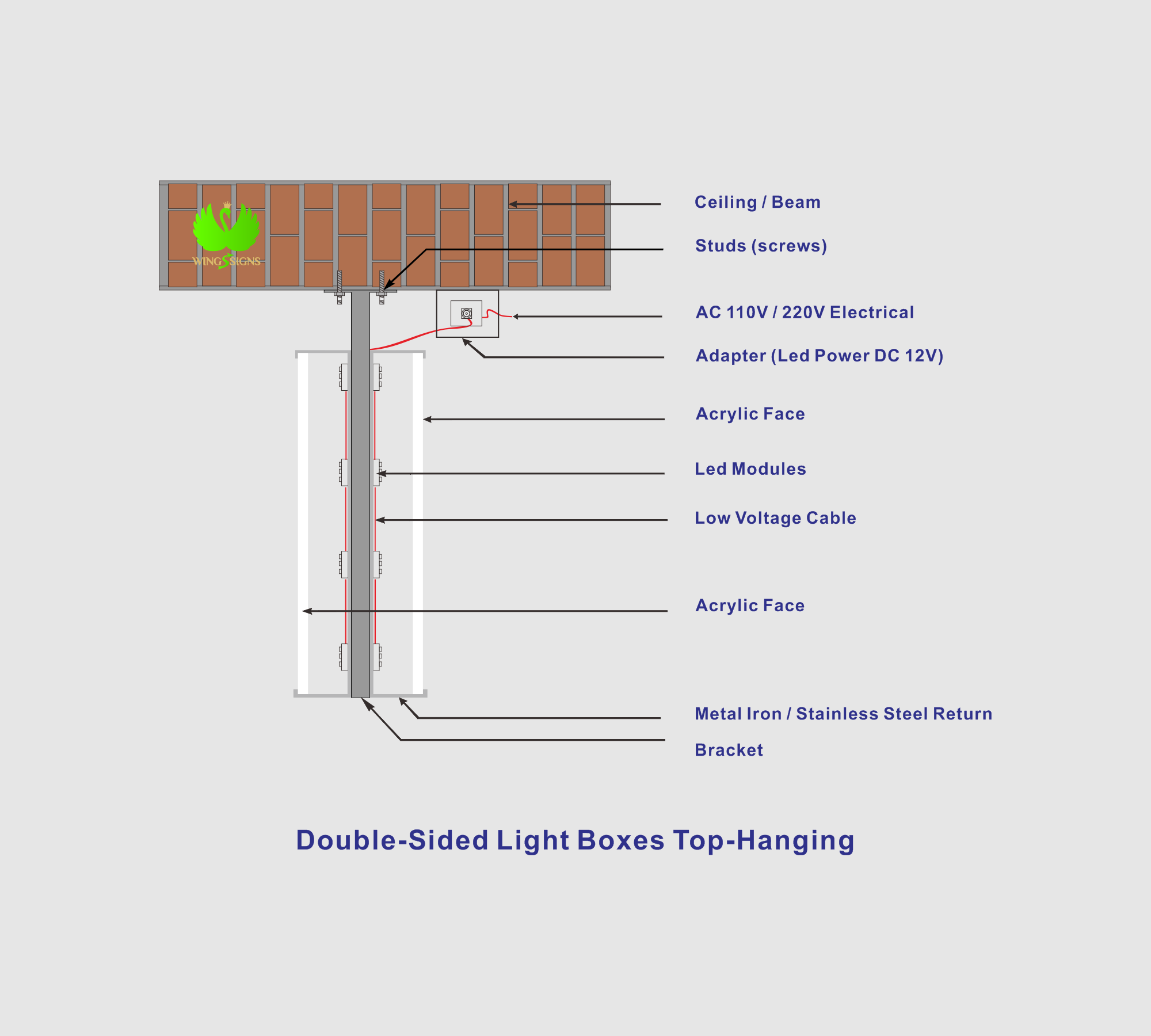

Double-sided light boxes signs are lighting from both sides (the face and the back) of the signs.Normally they are installed on the wall with the brackets on the side,  hanged from the ceiling with brackets on the top, or installed on a platform or roof with brackets on the bottom. So passengers can see them from either side of the streets or directions, which increase the visibility of the signs.

Normally it has three different installations: Top-Hanging, Bottom-Studs, and Side Brackets.

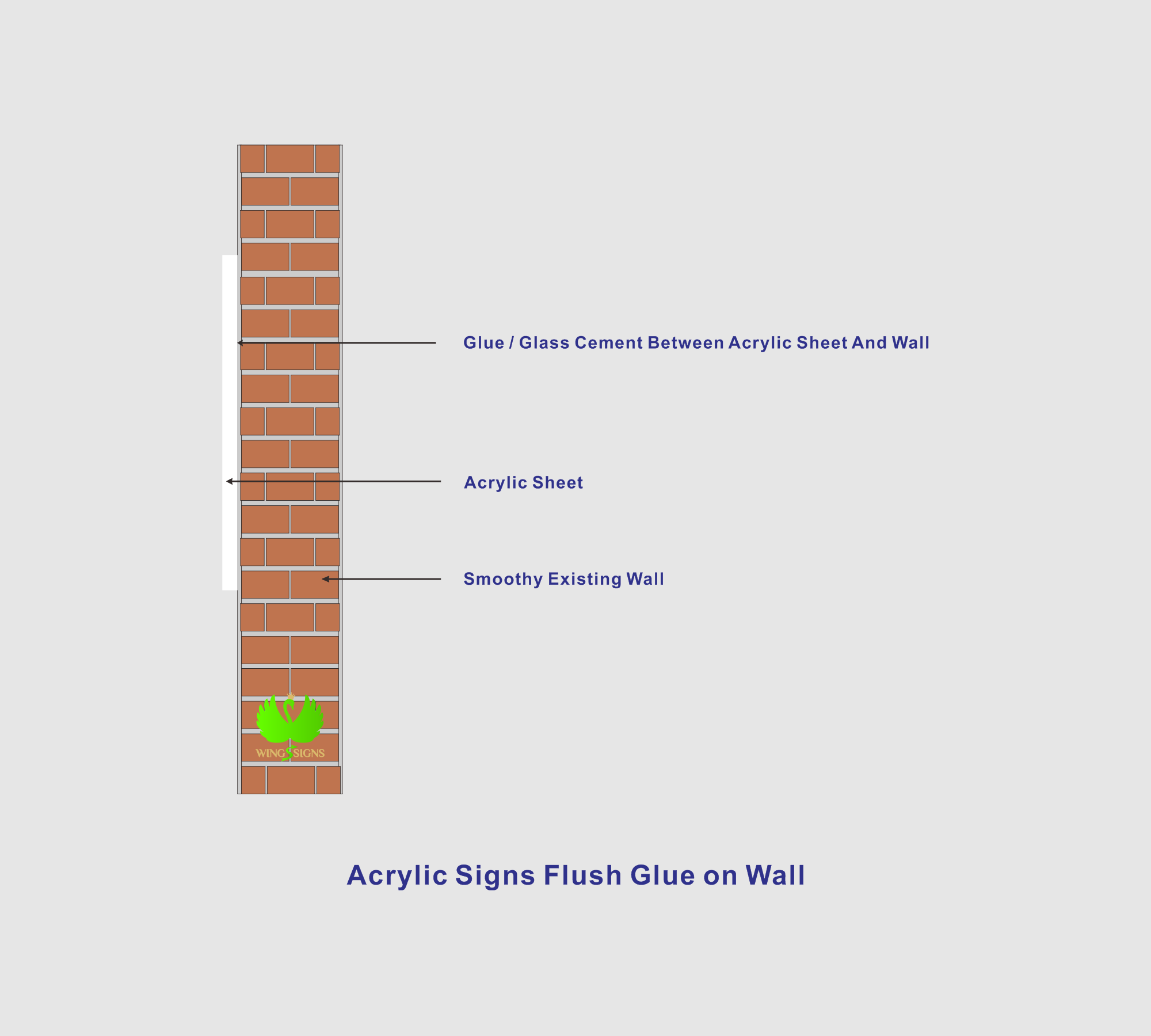

Plates signs are a kind sign mostly print on acrylic, metal, and stainless steel board. They appear as direction signs, nameplates, indicator plates, road signs etc, which are basic needs. So you can discover them quite easily anywhere. They are necessary parts if you’d like to customize a set of signs for your own business.

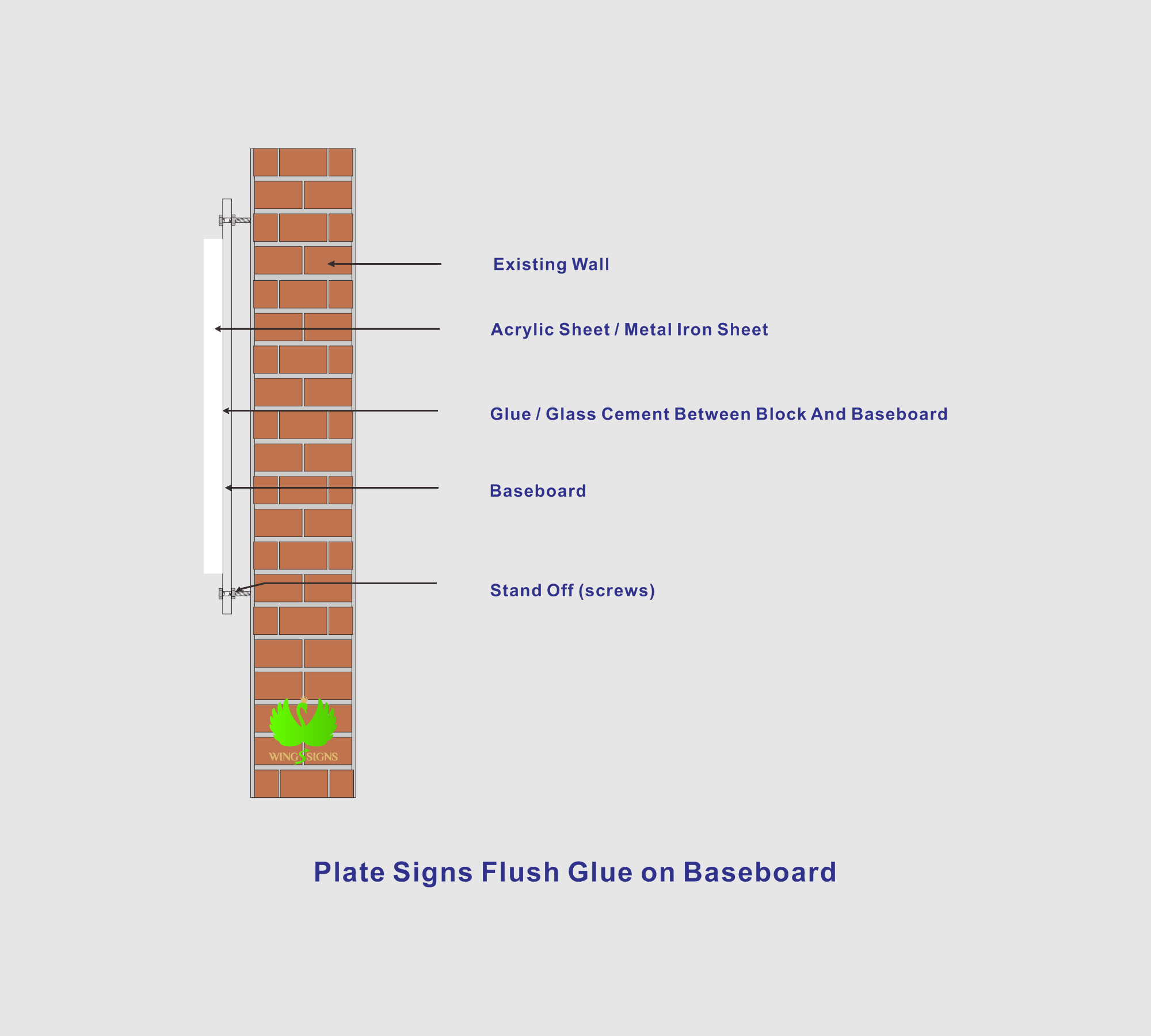

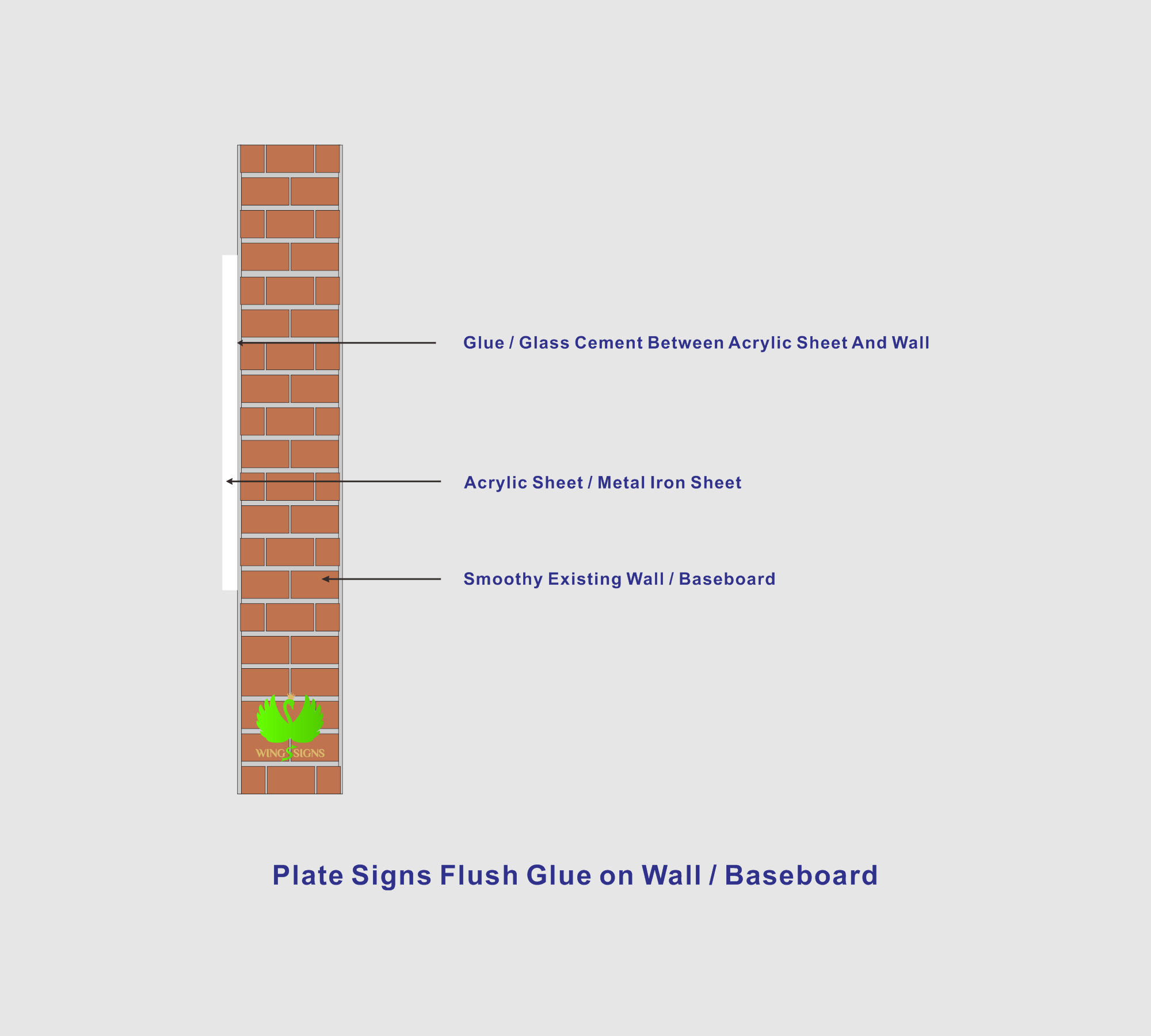

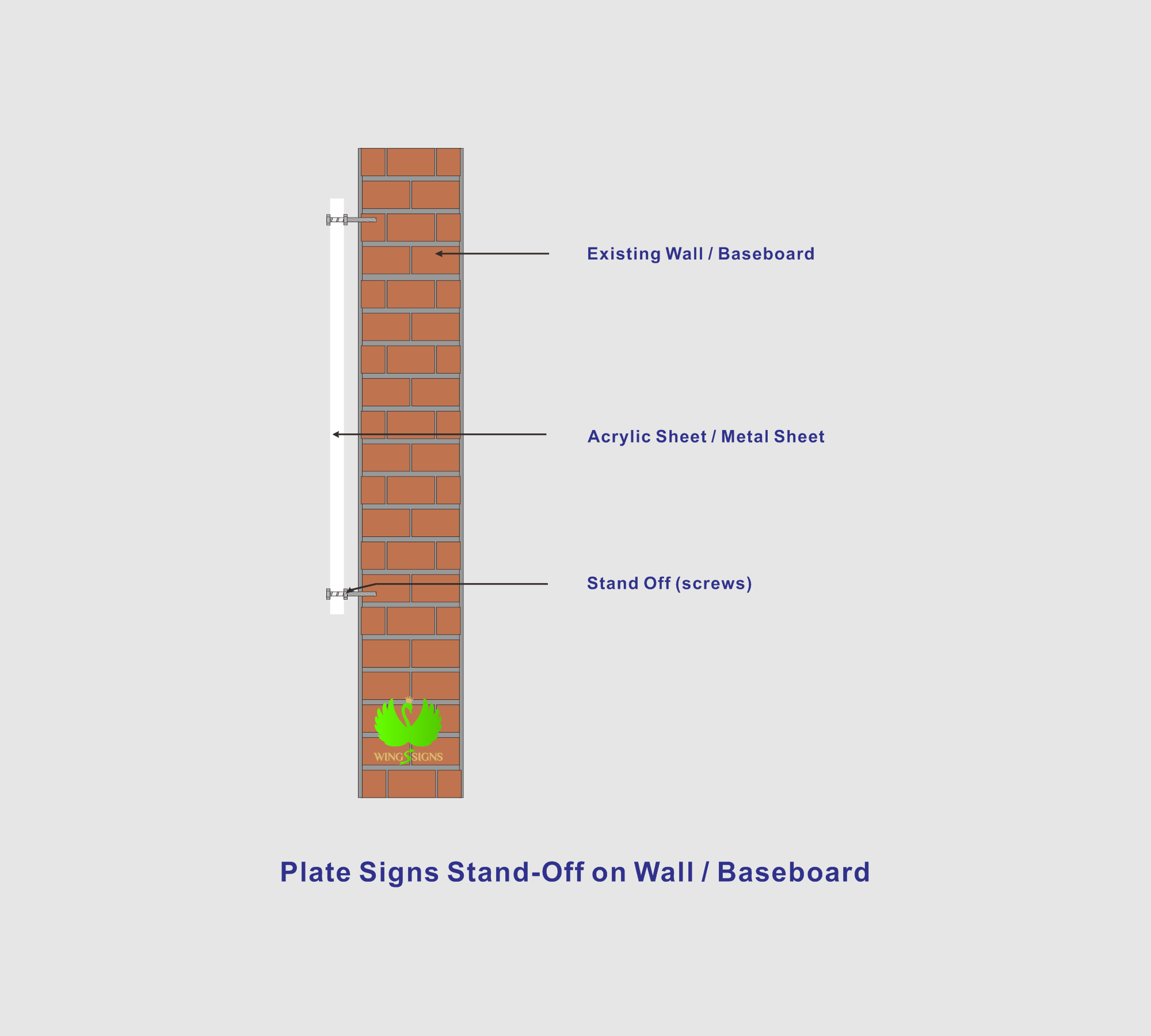

Normally it has three different installations: Flush glue on wall/baseboard, Flush glue on baseboard, and Stand-Off on wall/baseboard.
